The MB Series wall mount system offers retailers a flexible, all-in-one solution for displaying menu boards and other digital signage.Read More

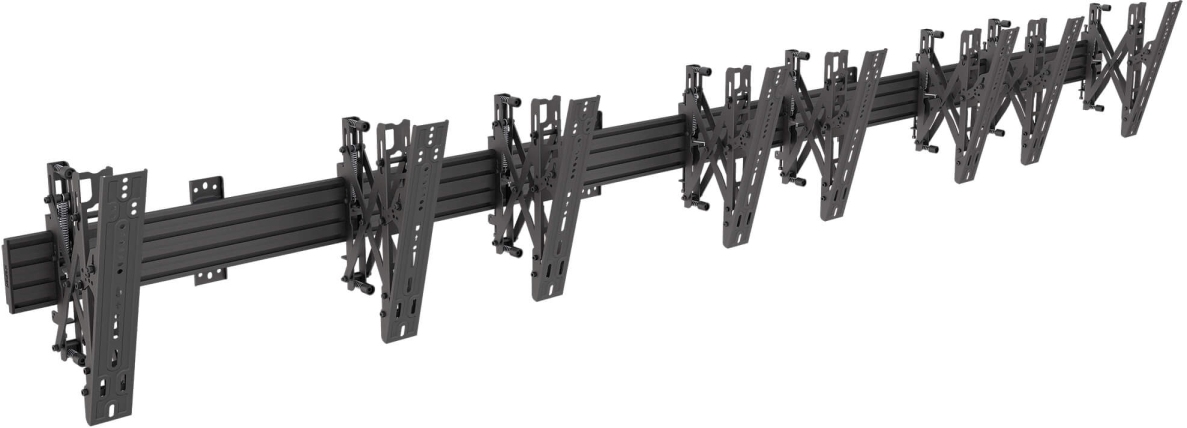

The MB Series wall mount system offers retailers a flexible, all-in-one solution for displaying menu boards and other digital signage. Its modular rails allow two to four screens to be placed adjacent to one another in portrait or landscape orientation, while precision leveling screws ensure perfect alignment. Combining discrete tilt settings with push-in pop-out arms for easy cable access, this versatile system is ideal for mounting at any height. Includes all the hardware necessary for wood stud, brick and concrete installations.
Pop-in pop-out arms
Adjustable horizontal leveling
Internal cable management
Available in three models, MB Series wall mounts support two to four screens weighing up to 66 pounds each. Their modular design allows for additional extrusions to be added to accommodate TVs with wider VESA patterns, or to connect multiple units together.
Individual leveling screws are provided to ensure your screens are perfectly aligned, even after installation.
Each mounting bracket features a unique spring mechanism to allow for easy access to your TV’s inputs. Simply push in to disengage the mechanism, and release to extend your TV away from the wall.
Tilt the mounting brackets 5°, 10° or 15° forward to improve line-of-sight while maintaining alignment between your screens.
Shipped with all the necessary hardware for wood stud, brick and concrete installations, MB Series wall mounts help you get your retail space up and running without delay.
Available in 28, 48 or 68 cm lengths, these supplemental extrusions can be used to accommodate various display sizes and VESA patterns. The MB Series’ modular system makes it easy to add additional extrusions, or to swap between larger and smaller ones to ensure a perfect fit. Additional connectors are also available when adding extrusions. Sold separately.
General Specs | |
| Product Weight (lbs.) | 70.8 |
| Tilt | Yes |
| Low Profile | No |
| Outdoor Approved | No |
| Smart Compatible | No |
| Wifi Capable | No |
| TV Size's up to (in.) | 60 |
| Weight Capacity (lbs.) | 66 |
| Mounting Location | Wall |
| Compatible Vesa Sizes | 75×75 to 600×400 |
| Manufacturer Warranty | 5 Year |
| Number Of Mounts | 3 |
General | |
| Number of TVs: | 3 |
| TV Sizes: | 40” to 60” |
| Weight Allowance: | 66 lb (30 kg) per TV |
| VESA Sizes: | 75×75 to 600×400 |
| Tilt: | 5°, 10°, 15° |
| Material: | Steel, Aluminum and Plastic Construction |
| Includes: | Installation Manual, All mounting hardware for wood stud and concrete installation |
| Warranty: | 5 years |
| Shipping box weight: | 74.3 lb (33.7 kg) |
| Shipping box dimensions: | 44.3″ x 14.2″ x 7.2″ (112.5 x 36 x 18.4 cm) |
| Product weight: | 70.8 lb (32.1 kg) |
