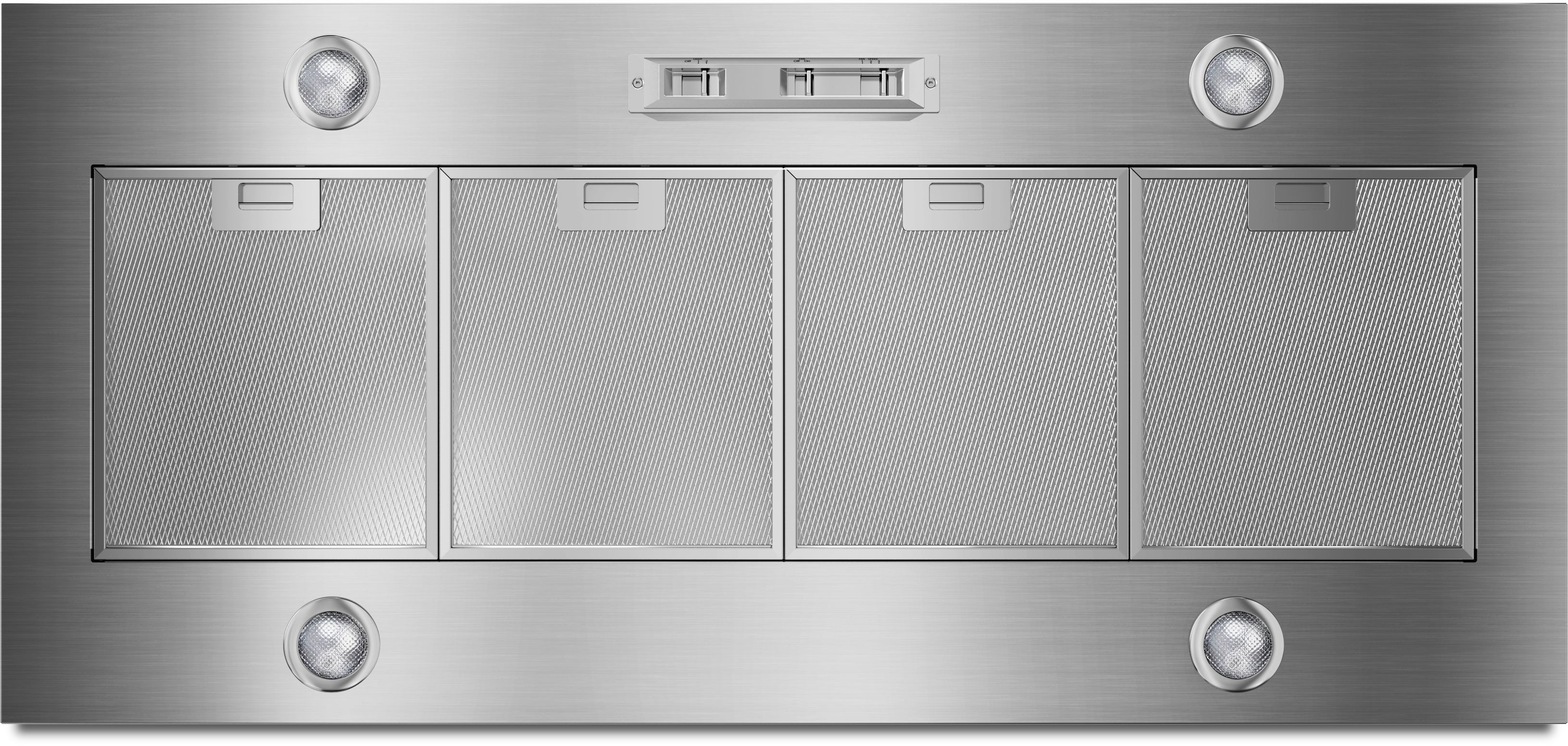

      Jenn-Air ® 47.88" Stainless Steel Custom Hood Liner


      Model #:

      UXL6048YSS-DISPLAY

      At a Glance

      This custom hood liner features a hidden ventilation system mounted to the inside of a custom vent cover (which can be made of metal, wood, plaster or tile), offering a uniquely streamlined look. Designed to work with larger cooking appliances, it also offers you a choice of motors for different levels of ventilation power.Read More

      Sale $398.08

      $1,449.99

      Save $1,051.91

      What We Offer

      Get to know this product.

      Product Overview

      Product Overview

      600 or 1,200 CFM Internal or In-Line Blower (Sold Separately)

      The single or dual centrifugal blower motor design allows you to choose two levels of ventilation performance. 600 CFM offers a high level of power, while 1,200 CFM is exceptionally powerful, designed to meet the demands of high-heat gas burners and capture even the most persistent and cooking odors.

      Compatible with Cooking Surfaces up to 108,000 BTUs

      This luxury custom hood liner is designed to withstand high heat outputs of up to 108,000 BTUs.

      Four Halogen Lights with Night-Light Setting

      Twice as energy efficient and long lasting as incandescent light bulbs, these halogen lights beautifully illuminate the cooking surface from above. They include a “dim” setting that can serve as a low-level light when the hood is not in use.

      Dishwasher-Safe Premium Mesh Filters

      These premium mesh filters, which effectively capture smoke, grease and cooking odors as they’re drawn through the hood, can be easily cleaned in the dishwasher.

      10-Inch Round Exterior Venting

      Large-diameter venting that enables quiet airflow for efficient performance.

      Three Fan Speed Settings

      Three different settings on this luxury custom hood liner allow you to control the ventilation level for optimum performance and energy efficiency.

      Hidden Slide Controls

      Thanks to concealed slide controls, this custom hood liner’s exterior is sleekly minimal, allowing you to achieve a more understated look.

      Auto On (Heat Sensor) Feature

      The intuitive auto on (heat sensor) feature protects against high temperatures. When excessive amounts of heat are detected, the sensor activates to increase to the maximum setting, and turns off when temperatures subside.

      Useful Documents
      Specifications

      General Specs

      ColorStainless Steel
      Color-Finish NameStainless Steel
      Duct Size (in.)10
      Maximum CFM1200
      Light(s)Halogen
      Height (in.)11.5
      Depth (in.)22
      ENERGY STAR CertifiedNo
      Manufacturer Warranty1 Year
      PositioningStationary

      Details

      Task Lighting:Yes
      Task Light Type:Halogen
      Number of Task Light Settings:2
      Night Light:Yes
      Night Light Type:Halogen
      Number of Night Light Settings:1

      Configuration and Overview

      Width:47.88"
      Size:48"
      Hood Type:Custom Hood Liners

      Ventilation System

      Filters:Dishwasher-Safe Grease Filters
      Duct Outlet Size:10
      Blower Type:Centrifugal
      Duct Direction:Vertical
      Duct Type:Round
      Number of Speeds:3
